Hermle Centrifuge Z 446

Plik pdf Ulotka
Zapytaj
Producent Hermle
Nr katalogowy 316.00 V01 - Z446, 230 V / 50 - 60 Hz

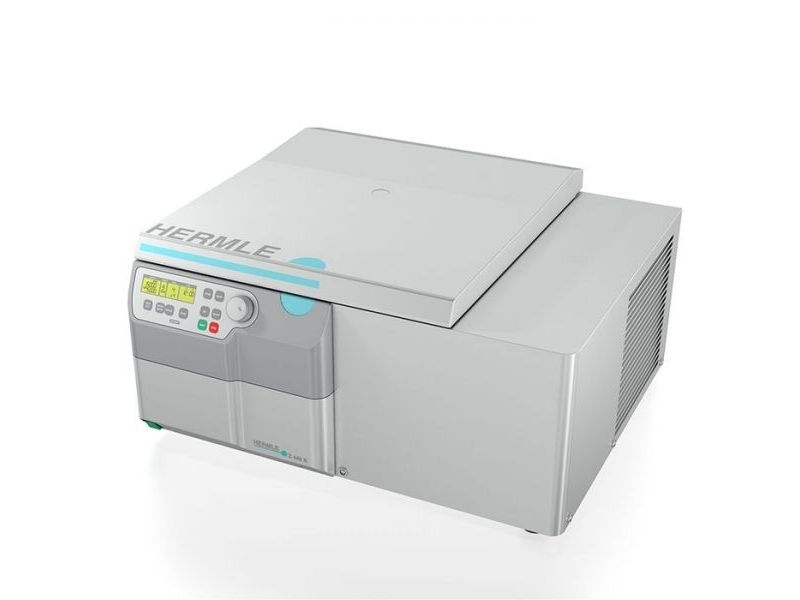

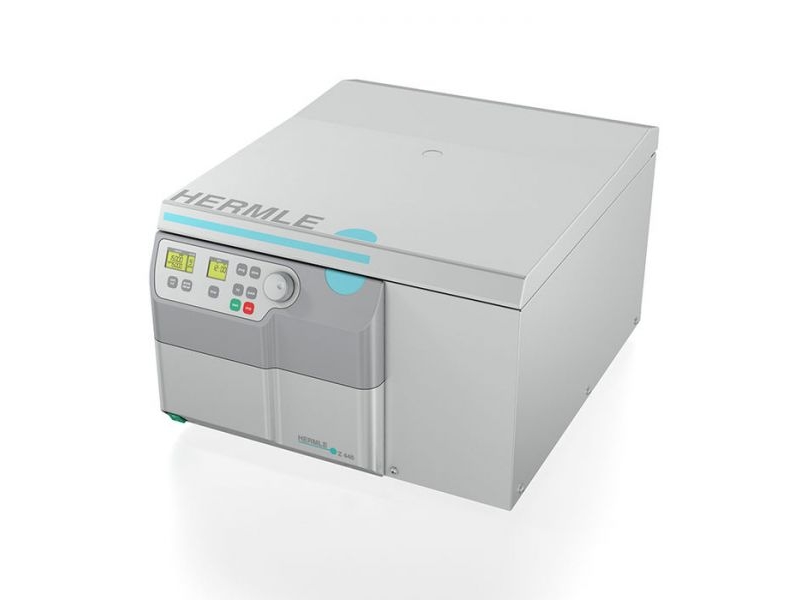

Te wirówki o dużej objętości Z 446 i Z 446 K osiągają przepustowość 68 x 15 ml stożkowych probówek lub 28 x 50 ml stożkowych probówek przy maks. RCF 3434/4346 xg.

Jeśli wymagane są wyższe prędkości, oferujemy również np. wirnik kątowy o max. RCF 14532/16022 xg dla 10 x 50 ml.

Wirniki o stałym kącie nachylenia i odchylane są odpowiednie do prawie wszystkich zastosowań w codziennym użytkowaniu w laboratoriach klinicznych, przemysłowych i badawczych.

  • obudowa z blachy stalowej lakierowanej na szaro odporna na wstrząsy i chemikalia
  • cyfrowy wyświetlacz zadanej i rzeczywistej prędkości / RCF, temperatury i czasu
  • Prędkość można wybrać w krokach co 10 obr./min od 200 do 16000 obr./min
  • ustawienie czasu pracy od 10 sekund do 99 godzin 59 minut. lub „ciągłe”
  • Szybki klucz do krótkich serii z odpowiednim cyfrowym wyświetlaniem czasu, który upłynął w sekundach
  • pamięć programu do przechowywania 99 kompletnych przebiegów wirówki
  • wygodny system „Hermle-Multi-Control”
  • automatyczne rozpoznawanie wirnika i korekta prędkości
  • automatyczne wskazanie niewyważenia z odcięciem bezpieczeństwa
  • Bezobsługowy silnik indukcyjny
  • blokada pokrywy silnika
  • zakres temperatur od -20 ° C do + 40 ° C w krokach co 1 ° C (TYLKO Z 446 K)
  • System chłodzenia bez freonu (TYLKO Z 446 K)
  • opcja programu chłodzenia wstępnego (TYLKO Z 446 K)
  • sygnał audio po zatrzymaniu
  • wirówka spełnia wymagania CE
  • wyprodukowane zgodnie z normą IEC 61010 i 61010-2

max. Prędkość:

16000 obr / min
max. RCF:

24325 xg
max. Objętość:

4 x 750 ml
Zakres prędkości:

200 - 16000 obr / min
Czas działania:

59 min przyrosty 50 s / 10 s, przyrosty 99 h 59 min / 1 min
Wymiary (SxWxG):

54 cm x 39 cm x 67 cm
Waga:

79 kg

Hermle Package
sales no. unit Description

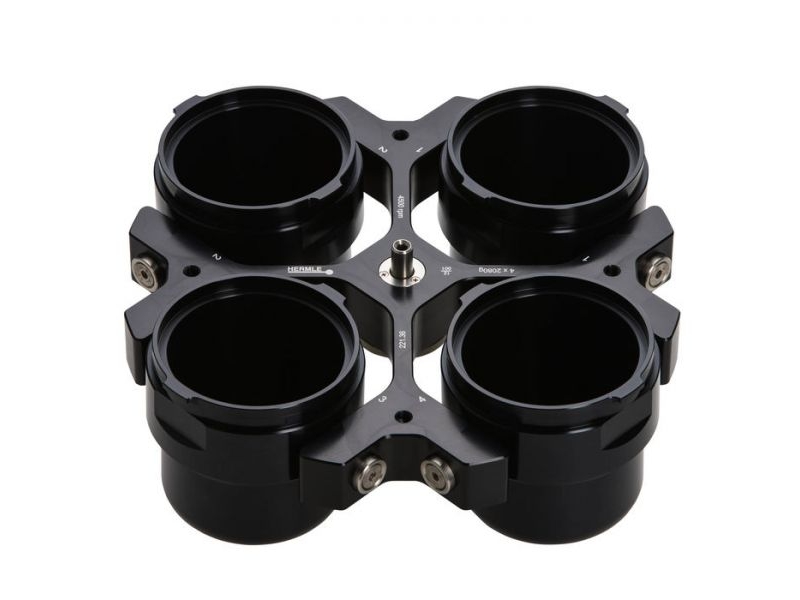

221.36 V02 1 Swing out rotor, 4 places
      Z 446 Z 446 K
    max. speed: 4000 rpm 4500 rpm

616 110 2 Rectangular buckets for microtitre plates (hermetical sealable)
      Z 446 Z 446 K
    max. speed: 4000 rpm 4500 rpm
    max. rcf: 3130 xg 3961 xg
    max. radius: 17.5 cm 17.5 cm
    max. loading height: 80 mm - max. loading weight: 640 g

616 111 2 Removing aid for microtitre plates
616 112 2 PC-lid incl. O-Ring for rectangular bucket 616.110
616 114 10 Spare O-Rings for rectangular bucket 616.110

    Adapter for rectangular buckets on request!

616 120 2 Microtitre carrier for max. 3 MTP/place suitable in rotor 221.36 V02
      Z 446 Z 446 K
    max. speed: 4000 rpm 4500 rpm
    max. rcf: 2754 xg 3486 xg
    max. radius: 15.4 cm 15.4 cm
    max. loading height: 72 mm - max. loading weight: 310 g

616 100 2 Round buckets for rotor 221.36 V02 for max. 750 ml (hermetical sealable)
      Z 446 Z 446 K
    max. speed: 4000 rpm 4500 rpm
    max. rcf: 3434 xg 4346 xg
    max. radius: 19.3 cm 19.3 cm

616 102 2 PC-lid incl. O-Ring for round bucket 616.100
616 103 10 Spare O-Rings for round bucket 616.100

716 110 2 Adapter 1 x 500 ml Corning bottle conical, Ø 96 mm; length 148 mm
716 024 2 Adapter 1 x 250 ml bottle, Ø 62 mm; length 135 mm
716 100 2 Adapter 1 x 225 ml/ 1 x 190 ml, Ø 61 mm; length min./max. 120/140 mm
716 023 2 Adapter 3 x 100 ml, Ø 41 mm; length min./max. 102/123 mm
716 101 2 Adapter 5 x 50 ml Falcon, Ø 29 mm; length 116 mm
716 111 2 Adapter 5 x 50 ml Falcon with rim, Ø 29 mm; length min./max. 100/120 mm
716 102 2 Adapter 7 x 50 ml Falcon, Ø 29 mm; length 116 mm
716 021 2 Adapter 7 x 50 ml RB, Ø 29 mm; length min./max. 102/123 mm
716 020 2 Adapter 8 x 30 ml, Ø 26 mm; length min./max. 102/123 mm
716 103 2 Adapter 14 x 15 ml Falcon, Ø 17 mm; length 121 mm
716 104 2 Adapter 17 x 15 ml Falcon, Ø 17 mm; length 121 mm *
716 018 2 Adapter 18 x 15 ml RB, Ø 17 mm; length min./max. 97/120 mm
716 015 2 Adapter 21 x 10 ml, Ø 16 mm; length min./max. 70/121 mm
716 016 2 Adapter 32 x 7 ml, Ø 13 mm; length min./max. 98/119 mm
716 106 2 Adapter f. Vacutainer 21 x 1.8-5 ml oder 21 x 4-7 ml, Ø 13 mm; length min./max. 75/100 mm
716 105 2 Adapter f. Vacutainer 18 x 5 ml or 18 x 6-10 ml, Ø 16 mm; length min./max. 75/100 mm
716 109 2 Adapter f. Sarstedt  38 x 1.1-1.4 ml, Ø 8 mm; length 66 mm
716 106 2 Adapter f. Sarstedt  21 x 2-3 ml / 3.5-5 ml, Ø 11 mm; length 66 / 92 mm
716 106 2 Adapter f. Sarstedt  21 x 2.6-2.9 ml / 2.7-4.3 ml / 4.9 ml, Ø 13 mm; length 65 / 75 / 90 mm
716 105 2 Adapter f. Sarstedt  18 x 4-5.5 ml / 7.5-8.2 mm, Ø 15mm; length 75 / 92 mm
716 105 2 Adapter f. Sarstedt  18 x 9-10 mm, Ø 16 mm; length 92 mm
    * 2-levels

38-5656 1 Grease for swing out rotors, 10 ml tube

221.16 V03 1 Swing out rotor, 2 places incl. 2 carriers no. 607.000 for MTP
    max. speed:  4500 rpm
    max. RCF: 2716 x g
    max. radius: 12.0 cm
    max. loading height: 63 mm
    max. loading weight: 310 g

607 000 2 Replacement carrier for rotor 221.16 V03

706 000 2 Adapter 48 x 1.5 / 2.0 ml

38-5656 1 Grease for swing out rotors, 10 ml tube






                   Z 446 / Z 446 K

Hermle Package
sales no. unit Description

220.86 V02 1 Swing out rotor, 4 places for round and rectangular buckets
      Z 446 Z 446 K
    max. speed:  4500 rpm 5000 rpm
    max. rcf: 3894 xg 4807 xg
    max. radius: 17.2 cm 17.2 cm

610 000 2 Rectangular bucket without cap  for 250 ml bottles or tube racks 710…

710 000 2 Adapter 250 ml bottle, Ø max. 61 mm, length min./max.: 100/120 mm
710 001 2 Adapter 190 ml Falcon, Ø 61 mm, length: 138 mm
710 002 2 Adapter 1 x 100 ml, Ø max. 40 mm, length min./max.: 90/120 mm
710 003 2 Adapter 1 x 85 ml, Ø max. 38 mm, length min./max.: 90/125 mm
710 004 2 Adapter 1 x 80 ml, Ø max. 44 mm, length min./max.: 90/120 mm
710 005 2 Adapter 2 x 50 ml, Ø max. 34 mm, length min./max.: 90/115 mm
710 006 2 Adapter 2 x 50 ml, Ø max. 28.5 mm, length min./max.: 90/120 mm
710 007 2 Adapter 2 x 50 ml Falcon, Ø 29 mm, length: 116 mm
710 008 2 Adapter 3 x 50 ml Falcon (can only be used without the lid of the bucket)
710 009 2 Adapter 5 x 25 ml, Ø max. 24 mm, length min./max.: 90/115 mm
710 010 2 Adapter 12 x 15 ml, Ø max. 17 mm, length min./max.: 85/120 mm
710 011 2 Adapter 6 x 15 ml Falcon, Ø 17 mm, length: 120 mm
710 012 2 Adapter 9 x 15 ml Falcon (can only be used without the lid of the bucket)
710 013 2 Adapter 20 x 7 ml, Ø max. 13 mm, length min./max.: 90/100 mm
710 014 2 Adapter 20 x RIA (5 ml), Ø max. 13 mm, length min./max.: 55/75 mm
710 010 2 Adapter f. Vacutainer 12 x 6-10 ml, Ø max. 16 mm, length min./max.: 85/120 mm
710 015 2 Adapter f. Vacutainer 12 x 5 ml, Ø max. 16 mm, length min./max.: 75/115 mm
710 016 2 Adapter f. Vacutainer 14 x 1.8-5 ml, Ø max. 13 mm, length min./max.: 61/115 mm
710 017 2 Adapter f. Vacutainer 14 x 4-7 ml, Ø max. 13 mm, length min./max.: 85/118 mm
710 019 2 Adapter f. Sarstedt 8 x 9-10 ml, Ø max. 16.5 mm, length min./max.: 83/120 mm
710 020 2 Adapter f. Sarstedt 12 x 4-5.5 ml / 7.5-8.2 ml, Ø 15 mm, length min./max.: 75/92 mm
710 021 2 Adapter f. Sarstedt 15 x 4.9 ml, Ø 13 mm, length min./max.: 90 mm
710 022 2 Adapter f. Sarstedt 15 x 2-5 ml / 3.5-5 ml, Ø 11 mm, length min./max.: 66/92 mm

    Cyto-system fitting rectangular bucket 610.000
38. 5414 1 Adapter for cyto-carrier, 4 units necessary
26. 5062 1 Carrier for cyto-container, 4 units necessary
45. 5065 1 Cyto-container with 2 conical bore-holes 3 ml
23. 5103 1 Spare cover for cyto-container
25. 5086 100 Filter cards for conical container, pack with 100 pieces

611 000 2 Round bucket with O-ring and see-through PC screw cap, hermetically
    sealable, for rotor 220.86 V02 and adapters 711... and 713...
    incl. insert 613.000

613 000 2 Spare insert for bucket 611.000 for adapters no. 711… and 713...

613 001 10 Replacement O-ring for bucket 611.000
613 012 2 Replacement cap for bucket 611.000

713 009 2 Adapter 190 ml Falcon, Ø 61 mm; length: 138 mm
713 010 2 Adapter 1 x 100 ml, Ø max. 40 mm; length: 114 mm
713 011 2 Adapter 1 x 85 ml, Ø max. 38 mm; length min./max.: 80/120 mm
711 003 2 Adapter 1 x 80 ml, Ø max. 44 mm; length min./max.: 85/110 mm
711 004 2 Adapter 1 x 50 ml, Ø max. 34 mm; length min./max.: 85/120 mm
711 005 2 Adapter 1 x 50 ml, Ø max. 28.5 mm; length min./max.: 95/130 mm
711 006 2 Adapter 1 x 50 ml Falcon, Ø 29 mm; length: 116 mm
711 007 2 Adapter 2 x 25 ml, Ø max. 24 mm; length min./max.: 85/120 mm
711 008 2 Adapter 7 x 15 ml, Ø max. 17 mm; length min./max.: 105/120 mm
711 009 2 Adapter 4 x 15 ml Falcon, Ø 17 mm; length: 120 mm
711 010 2 Adapter 12 x 7 ml, Ø max. 13 mm; length: 100 mm
711 011 2 Adapter 12 x RIA (5 ml), Ø max. 13 mm; length min./max.: 55/75 mm
711 008 2 Adapter f. Vacutainer 7 x 6-10 ml, Ø 16 mm; length min./max.: 105/120 mm
713 001 2 Adapter f. Vacutainer 7 x 5 ml, Ø 16 mm; length 75 mm
713 002 2 Adapter f. Vacutainer 8 x 1.8-5 ml, Ø 13 mm; length 75 mm
713 003 2 Adapter f. Vacutainer 8 x 4-7 ml, Ø 13 mm; length 100 mm
713 007 2 Adapter f. Sarstedt 5 x 9 - 10 ml, Ø max. 16.5 mm; length min./max.: 85/120 mm
713 005 2 Adapter f. Sarstedt 7 x 4-5.5 ml / 7 x 7.5-8.2 ml, Ø 15 mm; length min./max.: 75/92 mm
713 006 2 Adapter f. Sarstedt 12 x 4.9 ml, Ø 13 mm; length 90 mm
713 004 2 Adapter f. Sarsted 12 x 2-5 ml / 12 x 3.5-5 ml, Ø 11 mm; length min./max.: 66/92 mm
711 022 2 Adapter 8 x 1.5 ml, Ø 11 mm; length: 40 mm

38-5656 1 Grease for swing out rotors, 10 ml tube



 Z 446 / Z 446 K

Hermle Package
sales no. unit Description

221.08 V04 1 Swing out rotor, 4 places
    max. speed: 4500 rpm
    max. rcf: 4210 x g
    max radius: 18.6 cm

625 020 2 Microtitre carrier for 2 plates, for swing out rotor 221.08 V04
    max. speed: 4500 rpm
    max. rcf: 3327 x g
    max. radius: 14.7 cm
    max. loading height: 63 mm - max. loading weight: 310 g

625 000 2 Bucket/Adapter 12 x 15 ml Falcon, Ø 17 mm, length 120 mm
625 022 2 Bucket/Adapter 7 x 50 ml RB, Ø 30 mm, length min./max. 105/115 mm
625 001 2 Bucket/Adapter 7 x 50 ml Falcon, Ø 30 mm, length 120 mm (bucket can't be closed)
625 002 2 Bucket/Adapter 5 x 50 ml Falcon, Ø 30 mm, length 120 mm
625 003 2 Bucket/Adapter 1 x 250 ml, Ø 62 mm, length min./max. 110/130 mm
625 004 2 Bucket 1 x 500 ml, Ø 80 mm, length 125 mm (alu bucket can't be closed)
625 005 2 Bucket/Adapter 7 x 25 ml RB, Ø 24 mm, length 100 mm
625 006 2 Bucket/Adapter 14 x 15 ml RB, Ø 17 mm, length min./max. 90/120 mm
625 009 2 Bucket/Adapter f. Vacutainer 22 x 1.8-5 ml, Ø 13 mm, length min./max. 65/82 mm
625 014 2 Bucket/Adapter f. Vacutainer 22 x 4-7 ml, Ø 13 mm; length min./max. 90/115 mm
625 023 2 Bucket/Adapter f. Vacutainer 19 x 5 ml, Ø 16 mm; length 56 mm
625 010 2 Bucket/Adapter f. Vacutainer 19 x 6-10 ml, Ø 16 mm; length min./max. 95/105 mm
625 007 2 Bucket/Adapter f. Sarstedt 14 x 4-5.5 ml, Ø 16 mm; length min./max. 75/92 mm
625 007 2 Bucket/Adapter f. Sarstedt 14 x 7.5-8 ml, Ø 16 mm; length min./max. 75/92 mm
625 007 2 Bucket/Adapter f. Sarstedt 14 x 9-10 ml, Ø 16 mm; length min./max. 75/92 mm
625 008 2 Bucket/Adapter f. Sarstedt 19 x 2.6-2.9 ml, Ø 13 mm; length min./max. 65/90 mm
625 008 2 Bucket/Adapter f. Sarstedt 19 x 2.7-4.3 ml, Ø 13 mm; length min./max. 65/90 mm
625 008 2 Bucket/Adapter f. Sarstedt 19 x 4.9 ml, Ø 13 mm; length min./max. 65/90 mm
625 011 2 Bucket/Adapter 19 x 5-7 ml, Ø 13 mm; Length min./max. 60/120 mm
625 013 2 Bucket/Adapter 25 x 1.5 / 2.0 ml, Ø 11 mm; length 42 mm
625 015 2 Bucket/Adapter 4 x 50 ml conical with rim, Ø 30 mm; length 120 mm
625 016 2 Bucket/Adapter 1 x 190 ml Falcon conical, Ø 62 mm
625 017 2 Bucket/Adapter 3 x 100 ml, Ø 41 mm
625 018 2 Bucket/Adapter 3 x Centriprep 50 ml, Ø 30 mm
625 019 2 Bucket/Adapter 5 x Universal 30 ml, Ø 26 mm
625 021 2 Bucket/Adapter 2 x Carrier for Cyto-container

38-5656 1 Grease for swing out rotors, 10 ml tube

221.18 V02 1 Angle rotor for 6 x 85 ml tubes
      Z 446 Z 446 K
    max. speed: 11000 rpm 13000 rpm
    max. rcf:  15555 x g 21726 x g
    angle of rotor: 38° 38°
    max. radius:  11.5 cm 11.5 cm

687 015 5 Spare O-Ring Set for rotor 221.18 V02

707 000 2 Adapter 2 x 15 ml, Ø 17 mm; length min./max. 95/100 mm
707 001 2 Adapter 1 x 15 ml, Ø 17 mm; length min./max. 103/110 mm
707 002 2 Adapter 1 x 30 ml, Ø 25 mm; length min./max. 90/103 mm
707 003 2 Adapter 1 x 50 ml, Ø 29 mm; length 105 mm
707 004 2 Adapter 1 x 50 ml Falcon, Ø 29 mm; length 118 mm
707 014 2 Adapter 1 x 15 ml Falcon, Ø 17 mm; length 120 mm
707 015 2 Adapter 1 x 16 ml, Ø 18 mm; length min./max. 103/100 mm

221.20 V02 1 Angle rotor for 4 x 85 ml tubes
      Z 446 Z 446 K
    max. speed:  15000 rpm 16000 rpm
    max. rcf: 23140 x g 26328 x g
    angle of rotor: 30° 30°
    max. radius:  9.2 cm 9.2 cm

687 015 5 Spare O-Ring Set for rotor 221.20 V02

707 000 2 Adapter 2 x 15 ml, Ø 17 mm; length min./max. 95/100 mm
707 001 2 Adapter 1 x 15 ml, Ø 17 mm; length min./max. 103/110 mm
707 002 2 Adapter 1 x 30 ml, Ø 25 mm; length min./max. 90/103 mm
707 003 2 Adapter 1 x 50 ml, Ø 29 mm; length 105 mm
707 004 2 Adapter 1 x 50 ml Falcon, Ø 29 mm; length 118 mm
707 014 2 Adapter 1 x 15 ml Falcon, Ø 17 mm; length 120 mm
707 015 2 Adapter 1 x 16 ml, Ø 18 mm; length min./max. 103/100 mm

                   Z 446 / Z 446 K

Hermle Package
sales no. unit Description

221.21 V02 1 Angle rotor for 6 x 250 ml tubes
    max. speed: 8000 rpm
    max. rcf:  10016 x g
    angle of rotor: 28°
    max. radius:  14.0 cm

713 015 2 Adapter 8 x 1.5 ml, Ø 11 mm; length 40 mm
713 020 2 Adapter 5 x 10 ml, Ø 16 mm; length 80 mm
713 025 2 Adapter 4 x 15 ml (Falcon), Ø 17 mm; length 120 mm
713 028 2 Adapter 2 x 30 ml, Ø 26 mm; length 92 mm
713 030 2 Adapter 1 x 50 ml, Ø 29 mm; length 103 mm
713 042 2 Adapter 1 x 50 ml (Falcon), Ø 30 mm; length 118 mm

221.22 V02 1 Angle rotor for 6 x 50 ml tubes (for 50 ml round bottom tubes only)
    max. speed: 13000 rpm
    max. rcf: 15869 x g
    angle rotor: 26°
    max. radius: 8.4 cm

687 020 5 Spare O-Ring Set for rotor 221.22 V02

708 019 2 Adapter 1 x 30 ml, Ø 25 mm; length min./max. 92/95 mm
708 003 2 Adapter 1 x 16 ml, Ø 18 mm; length min./max. 100/105 mm
708 004 2 Adapter 1 x 15 ml, Ø 17 mm; length min./max. 100/105 mm
708 017 2 Adapter 1 x 15 ml Falcon, Ø 17 mm (only for use without rotor lid)

221.28 V02 1 Angle rotor for 20 x 10 ml tubes
    max. speed: 12000 rpm
    max. rcf: 15775 x g
    angle of rotor: 30°
    max. radius: 9.8 cm

687 015 5 Spare O-Ring Set for rotor 221.28 V02

221.51 V02 1 Angle rotor for 4 x 500 ml tubes
    max. speed: 8000 rpm
    max. rcf: 10367 x g
    angle of rotor: 24°
    max. radius: 14.5 cm

712 001 2 Adapter 1 x 250 ml, Ø 61.5 mm; length 195 mm
712 102 2 Adapter 1 x 250 ml Corning, Ø 60.5 mm; length 171 mm
712 100 2 Adapter 1 x 175 ml Falcon, Ø 61.5 mm; length 118 mm
712 100 2 Adapter 1 x 225 ml Falcon, Ø 61.5 mm; length 137 mm
712 101 2 Adapter 1 x 50 ml Falcon, Ø 29.5 mm; length 115 mm
712 104 2 Adapter 3 x 50 ml, Ø 29 mm; length 103 mm
712 103 2 Adapter 4 x 30 ml, Ø 25.5 mm; length 92 mm
712 105 2 Adapter 6 x 15 ml Falcon, Ø 17 mm; length 120 mm

221.52 V02 1 Angle rotor for 10 x 50 ml tubes (for 50 ml Falcon tubes only)
      Z 446 Z 446 K
    max. speed:  10000 rpm 10500 rpm
    max. rcf: 14532 x g 16022 x g
    angle of rotor: 38° 38°
    max. radius:  13 cm 13 cm

687 030 5 Spare O-Ring Set for rotor 221.52 V02

708 050 2 Adapter for 15 ml RB, Ø 17 mm
      Z 446 Z 446 K
    min. length:   97 mm  97 mm
    max. length:  123 mm  123 mm
    max. rcf: 13973 xg 15405 xg
    radius: 12.5 cm 12.5 cm

701 011 2 Adapter 1 x 7 ml, Ø 13.5 mm; length min./max. 95/115 mm
701 012 2 Adapter 1 x 5 ml (RIA), Ø 13.5 mm; length min./max. 70/90 mm
701 015 6 Adapter 1 x 1.5 ml, Ø 11 mm; length 42 mm





 Z 446 / Z 446 K

Hermle Package
sales no. unit Description

708 051 2 Adapter for 15 ml Falcon, Ø 17 mm
      Z 446 Z 446 K
    min. length:   121 mm 121 mm
    max. length:  121 mm 121 mm
    max. rcf: 14309 xg 15775 xg
    radius: 12.8 cm 12.8 cm

701 011 2 Adapter 1 x 7 ml, Ø 13.5 mm; length min./max. 95/115 mm
701 012 2 Adapter 1 x 5 ml (RIA), Ø 13.5 mm; length min./max. 70/90 mm
701 015 6 Adapter 1 x 1.5 ml, Ø 11 mm; length 42 mm

221.17 V07 1 Angle rotor 30 x 1.5 ml / 2,0 ml, sealable
    max. speed: 15000 rpm
    max. rcf: 23643 x g
    max. radius: 9.4 cm
    angle of rotor: 45°

616 113 5 Spare O-Ring Set for rotor 221.17 V07

704 004 6 Adapter set for 0.2 / 0.4 ml tubes, Ø 6 mm
704 005 6 Adapter set for 0.5 ml tubes, Ø 8 mm

38-5656 1 Grease for angle rotor, 10 ml tube

220.87 V16 1 Angle rotor for 24 x 1.5/2.0 ml tubes
    max. speed: 16000 rpm
    max. RCF: 24325 xg
    angle of rotor: 45°
    max. radius: 8.5 cm

704 004 6 Adapter set for 0.2 / 0.4 ml tubes, Ø 6 mm
704 005 6 Adapter set for 0.5 ml tubes, Ø 8 mm

220.87 V15 1 Angle rotor for 24 x 1.5/2.0 ml tubes, hermetically sealable
    max. speed: 16000 rpm
    max. RCF: 24325xg
    angle of rotor: 45°
    max. radius: 8.5 cm

687 000 5 Spare O-Ring Set for rotor 220.87 V15

704 004 6 Adapter set for 0.2 / 0.4 ml tubes, Ø 6 mm
704 005 6 Adapter set for 0.5 ml tubes, Ø 8 mm

38-5656 1 Grease for angle rotor, 10 ml tube

221.68 V02 1 Angle rotor for 44 x 1.5/2.0 ml tubes
    max. speed: 16000 rpm
    max. RCF: 24038/24325 xg
    angle of rotor: 32°/55°
    max. radius: 8.5 / 8.4 cm

704 004 6 Adapter set for 0.2 / 0.4 ml tubes, Ø 6 mm
704 005 6 Adapter set for 0.5 ml tubes, Ø 8 mm

221.38 V01 1 Angle rotor for 4 x 8 PCR Stripes
    max. speed: 15000 rpm   max. radius: 6.1 cm
    max. rcf:  15343 x g   max. Ø:        6.0 mm
    angle of rotor: 45°

687 005 5 Spare O-Ring Set for rotor 221.38 V01

These high-volume centrifuges Z 446 and Z 446 K achieve a throughput of 68 x 15 ml conical tubes or 28 x 50 ml conical tubes at a max.RCF of 3434/4346 xg.

If higher speeds are required, we also offer e.g. an angle rotor with a max. RCF of 14532/16022 xg for 10 x 50 ml.

The fixed-angle and swing-out rotors are suitable for almost all aplications in everyday use in clinical, industrial and research laboratories.
